Weather out.
Fire out.
Maintenance out.

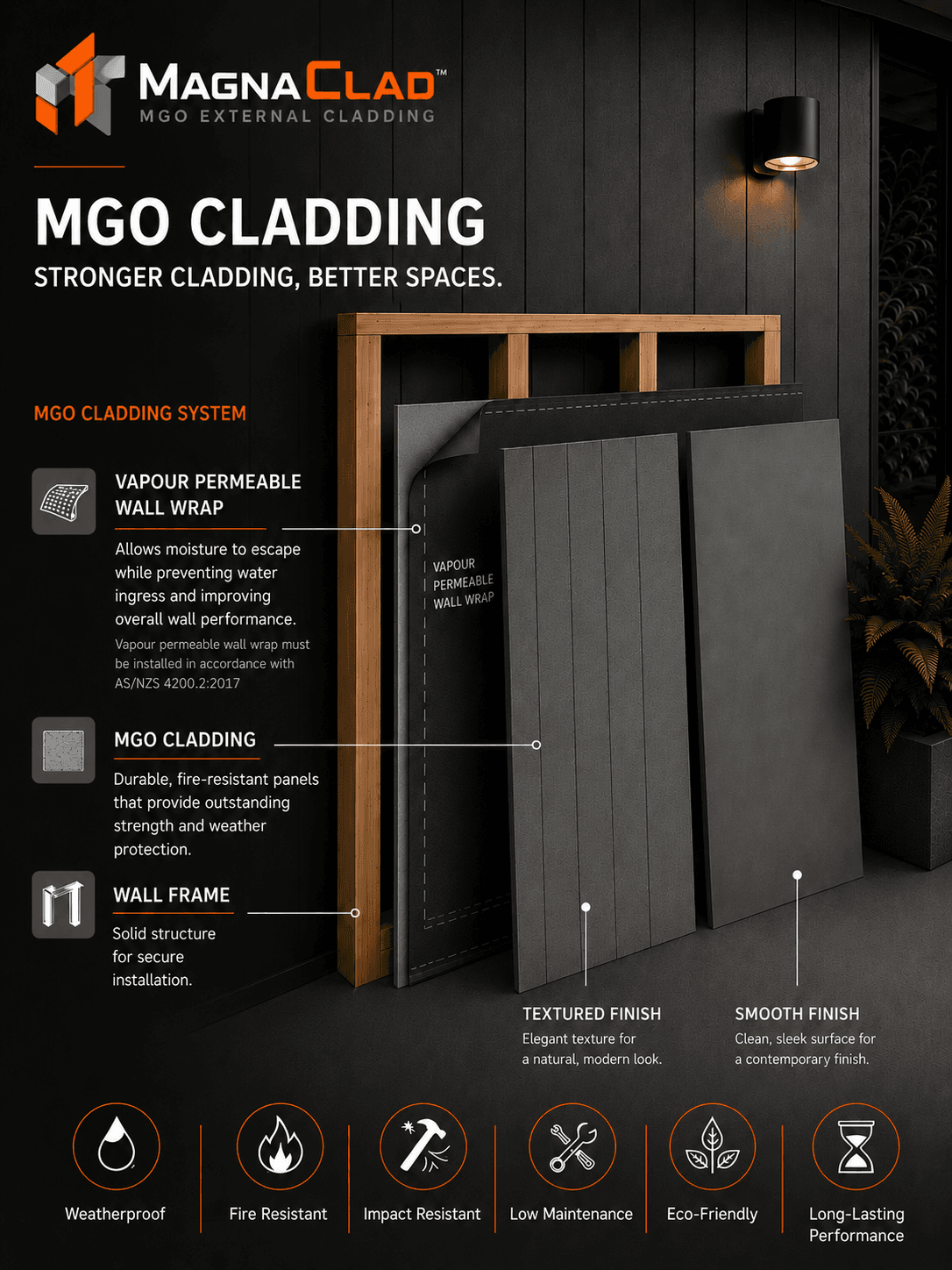

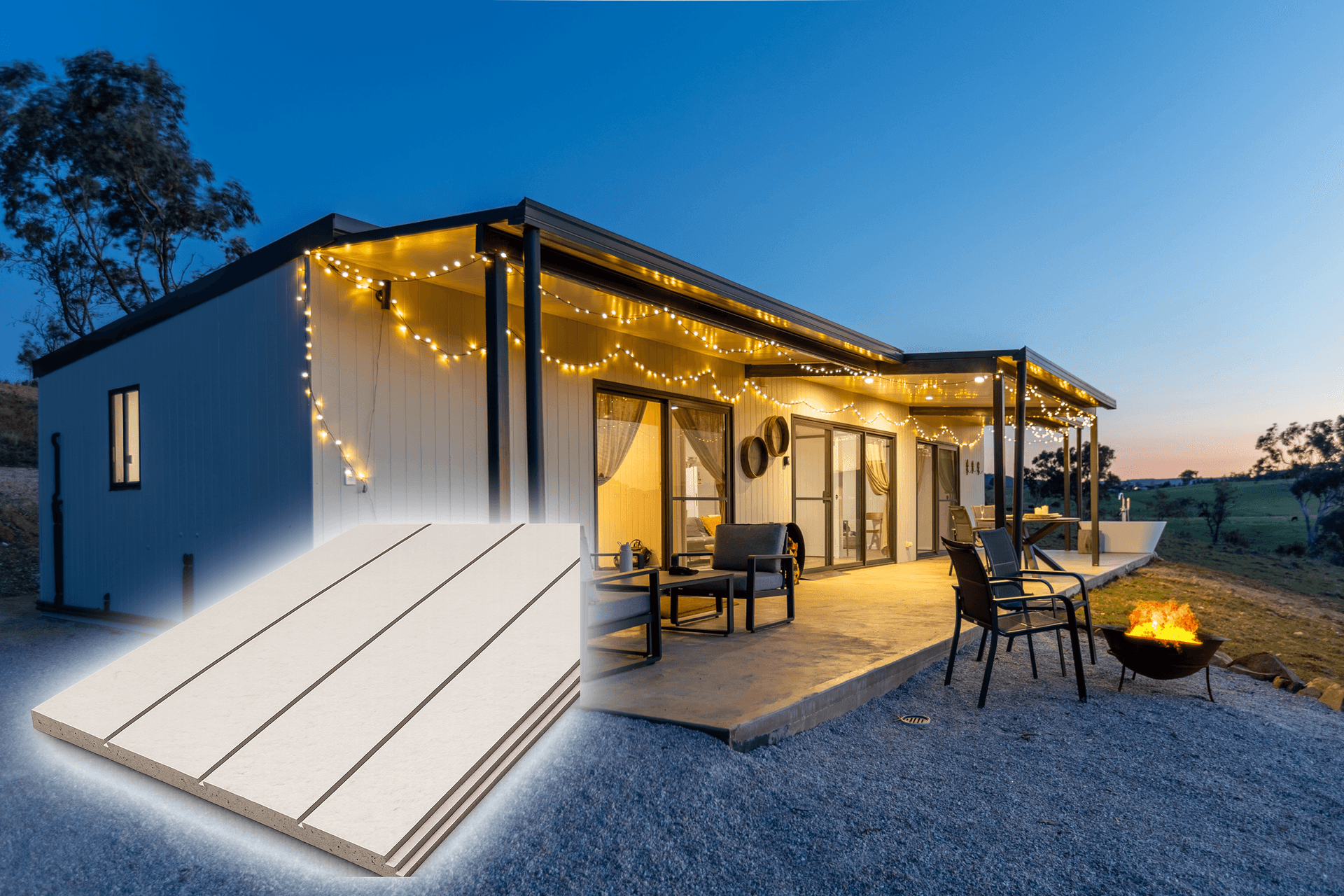

10mm shiplap-edge MGO panel engineered for external walls. One layer delivers fire resistance, weather protection and structural bracing without a second product.
Three lengths. One thickness.
All sheet sizes are in stock at Silverdale. Custom lengths available on request for large-volume orders.
| Size | Thickness | Kgm2 | SheetKg | Notes |
|---|---|---|---|---|
| 1200 × 2400mm | 10mm | 9.6 kg/m² | ~27.6 kg | Standard residential |
| 1200 × 2700mm | 10mm | 9.6 kg/m² | ~31.1 kg | High ceiling / commercial |
| 1200 × 3000mm | 10mm | 9.6 kg/m² | ~34.6 kg | Tilt-panel & modular |

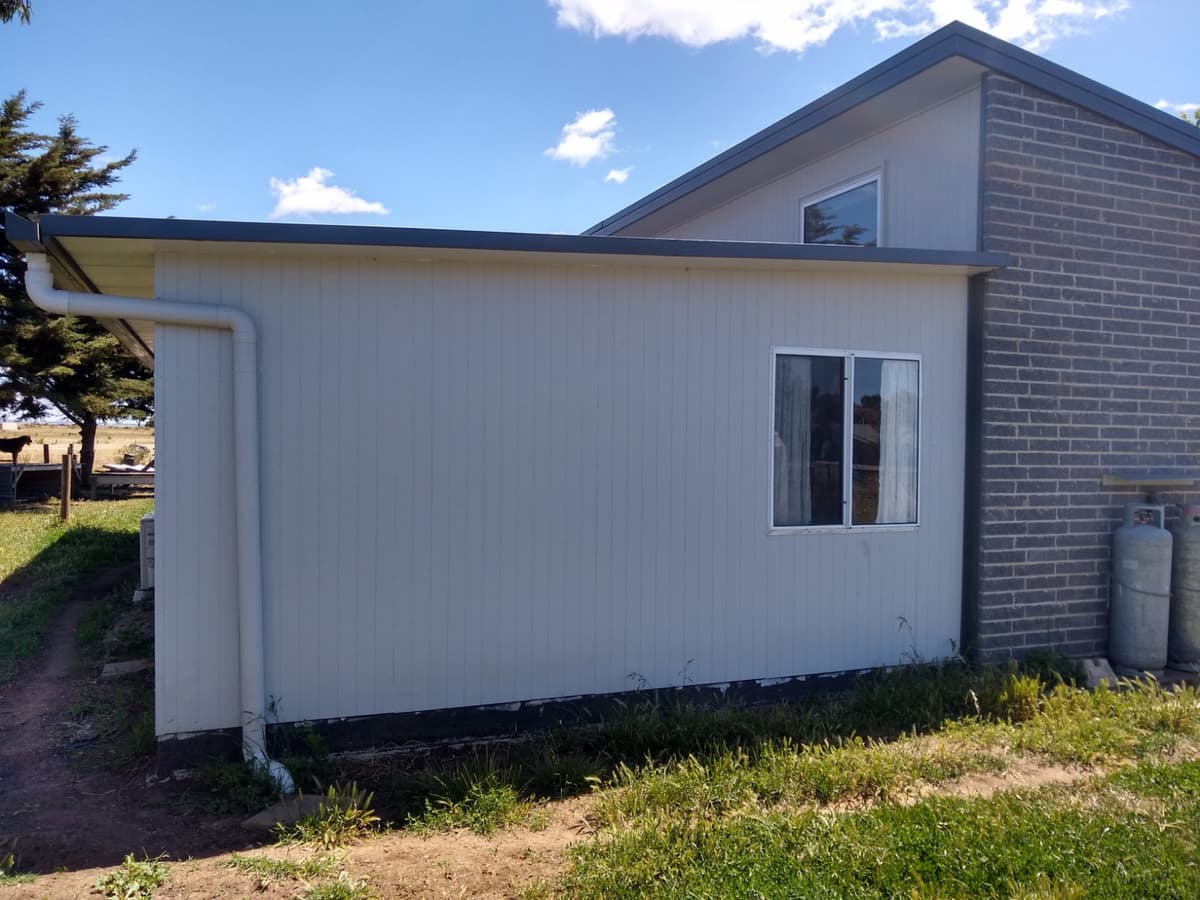

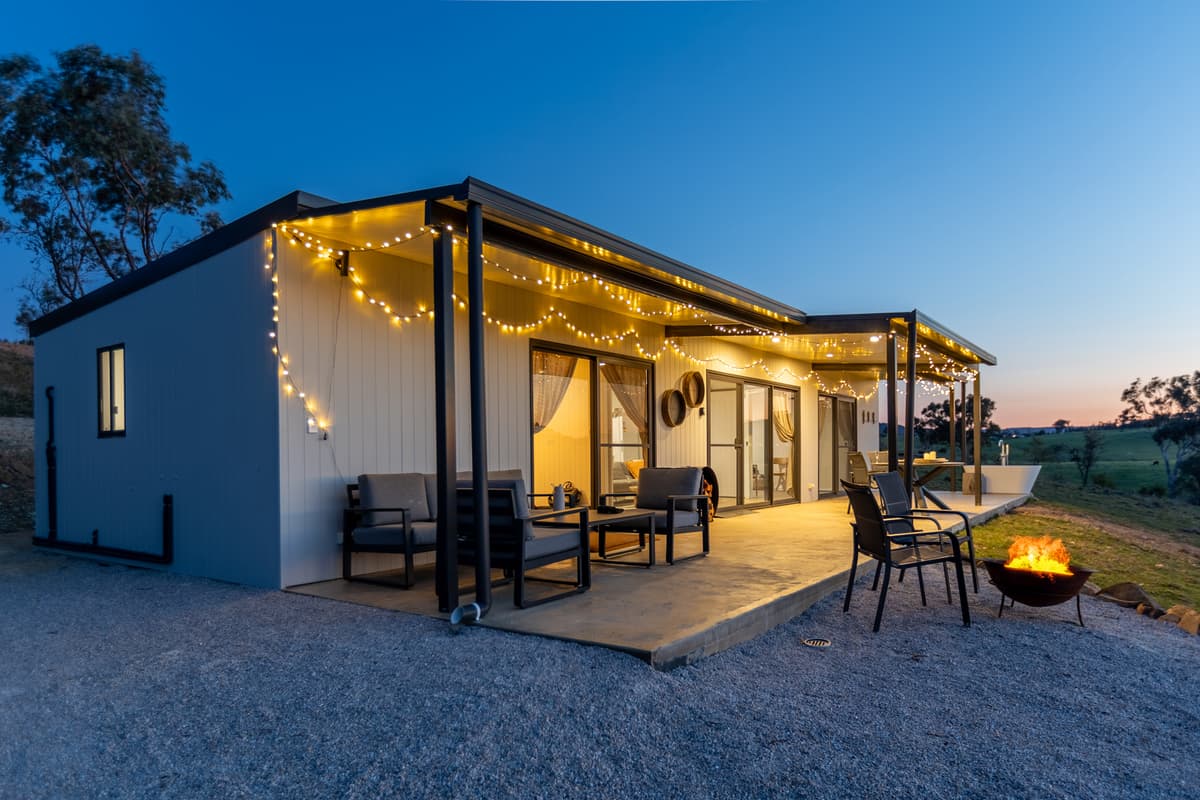

Installed by real builders.

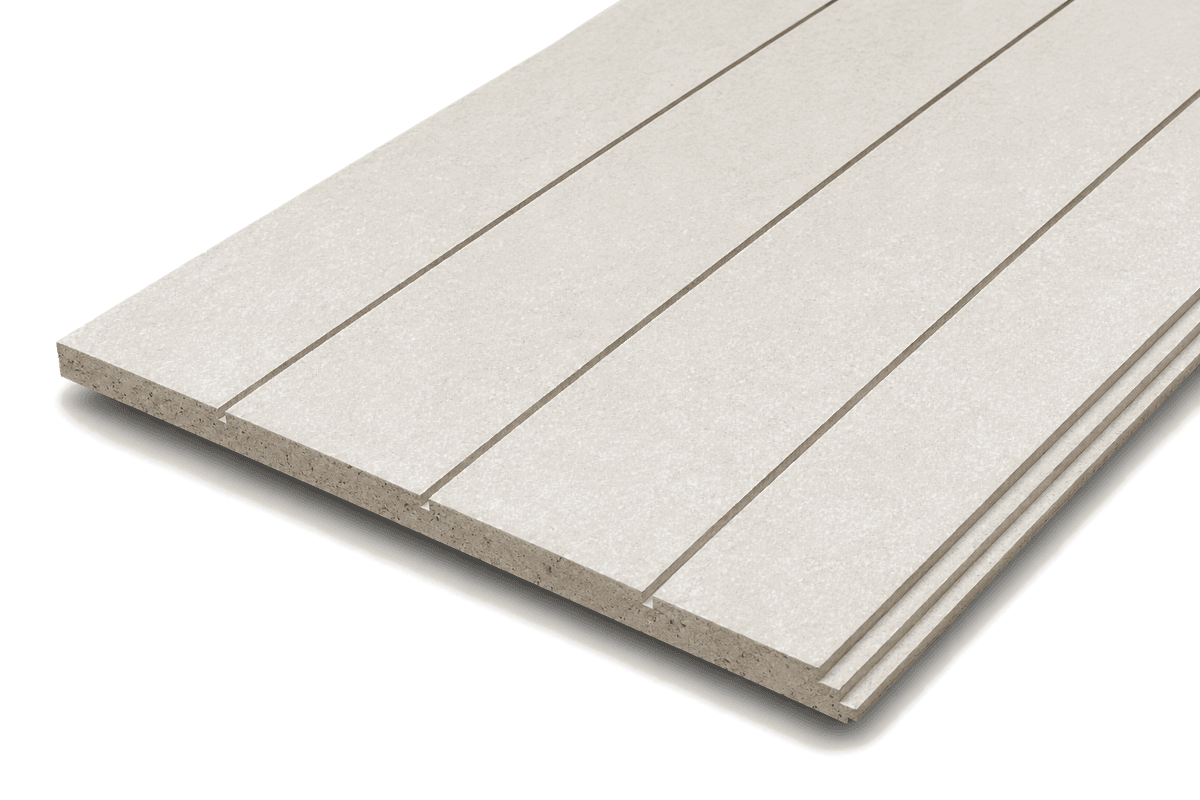

Overlap joint. Weathertight from day one.
The shiplap profile creates a stepped overlap at every horizontal joint. Rain runs off. Wind can't find a gap. No sealant required for standard vertical-rain installations.
- 15mm overlap at every joint
- Eliminates capillary water ingress
- No silicone or flashing required at standard joins
- Compatible with standard timber or steel stud framing
Class A1. The highest non-combustible classification.
MagnaClad carries EN 13501-1 Class A1 certification from Intertek — the same fire classification used by concrete and steel. No flame spread. No smoke. No flashover.
Download the Intertek certificateOn the wall in a morning.
Full install guide in the Resources library.
Prepare the frame
Framing at 450mm or 600mm centres. Check plumb and straightness — MGO shows what's behind it.
Cut to size
Score with a Stanley knife and snap, or use an angle grinder for angles. No wet saw required.
Fix and overlap
Apply from bottom up. Shiplap edge overlaps 15mm. Fix at 200mm centres to each stud with 8-gauge Type 17 screws.

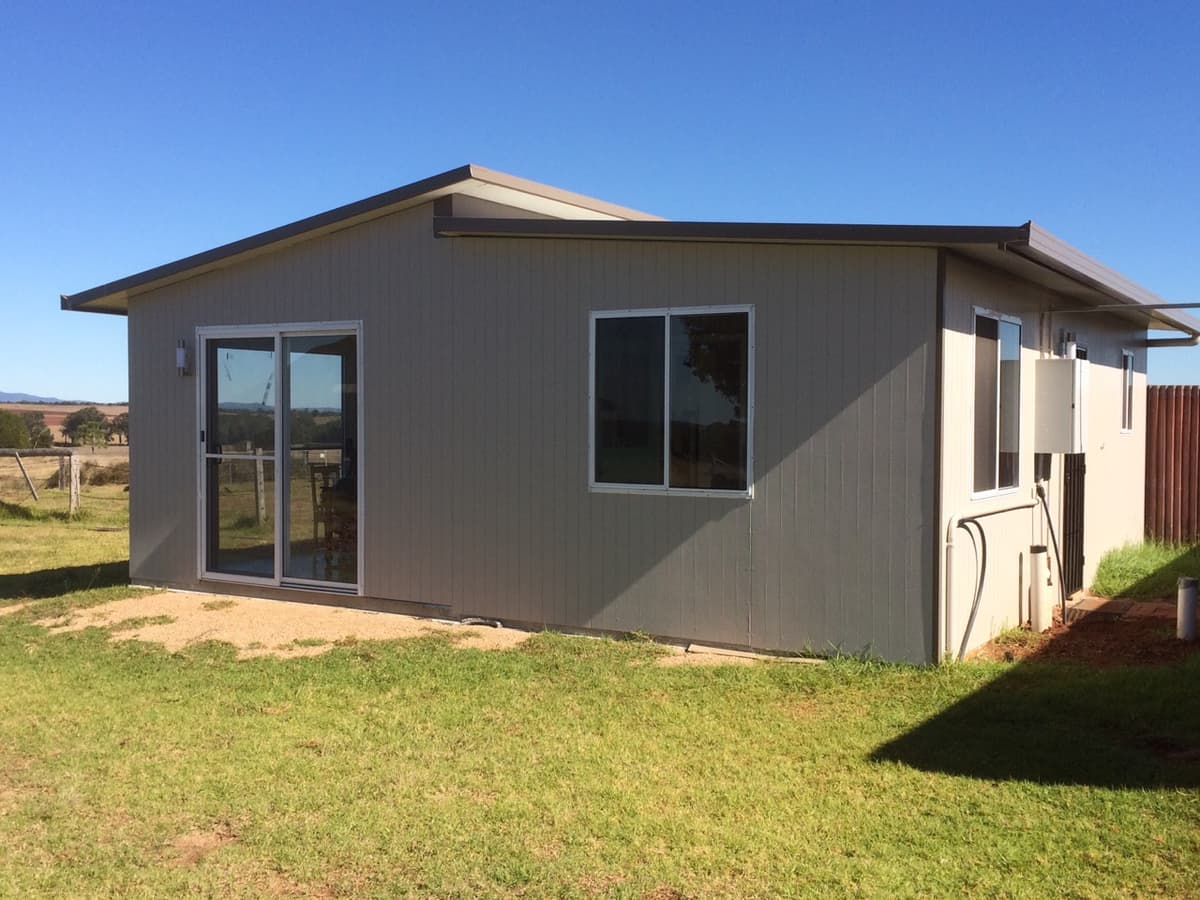

Finish and coat
Smooth face takes acrylic render, texture coat or direct paint. No primer required on standard applications.
See the shiplap edge for yourself.
A 300 × 300mm offcut of MagnaClad, a fastener pack and the install card. Free, ships in three business days.
