Internal walls that hold their shape. And their finish.
10mm recessed-edge MGO wall lining with a smooth, paint-ready face. Moisture and mould resistant — built for wet areas, laundries and any room that sees steam.
Three lengths. Same smooth face.
Stocked at Silverdale in all three lengths. Recessed edge on all sheets — same finish regardless of length.
| Size | Thickness | Kgm2 | SheetKg | Notes |
|---|---|---|---|---|
| 1200 × 2400mm | 10mm | 9.6 kg/m² | ~27.6 kg | Standard ceiling height |
| 1200 × 2700mm | 10mm | 9.6 kg/m² | ~31.1 kg | High ceiling residential |
| 1200 × 3000mm | 10mm | 9.6 kg/m² | ~34.6 kg | Commercial & modular |
Installed by real builders.

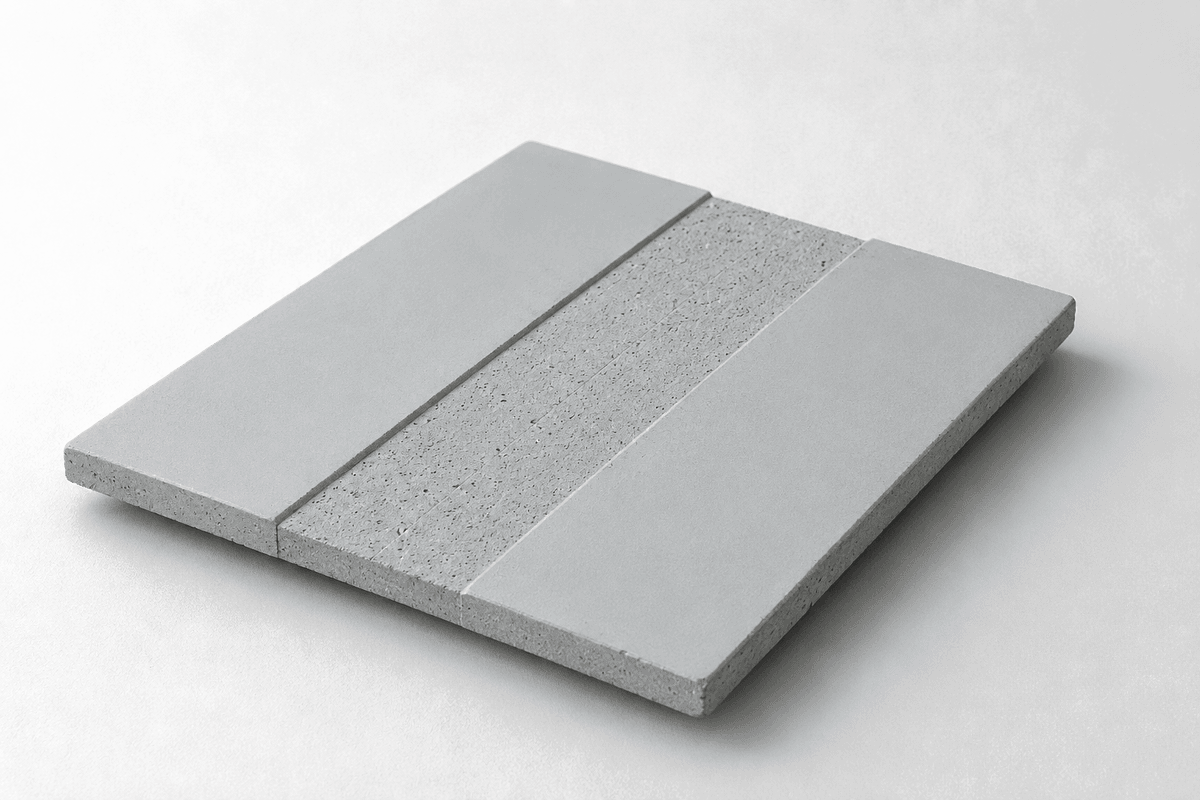

Recessed edge. Flush joint. No shadow line.
The recessed profile allows jointing compound to fill flush with the face. Tape, skim and paint — the wall looks like one continuous surface. No movement, no cracking at joints.
- Compatible with standard plasterboard jointing compound
- No special tools or techniques required
- Same process as gyprock — any plasterer can do it
- Face is smooth and absorbent — primes and paints in one coat
Where plasterboard can't go. MagnaLiner can.

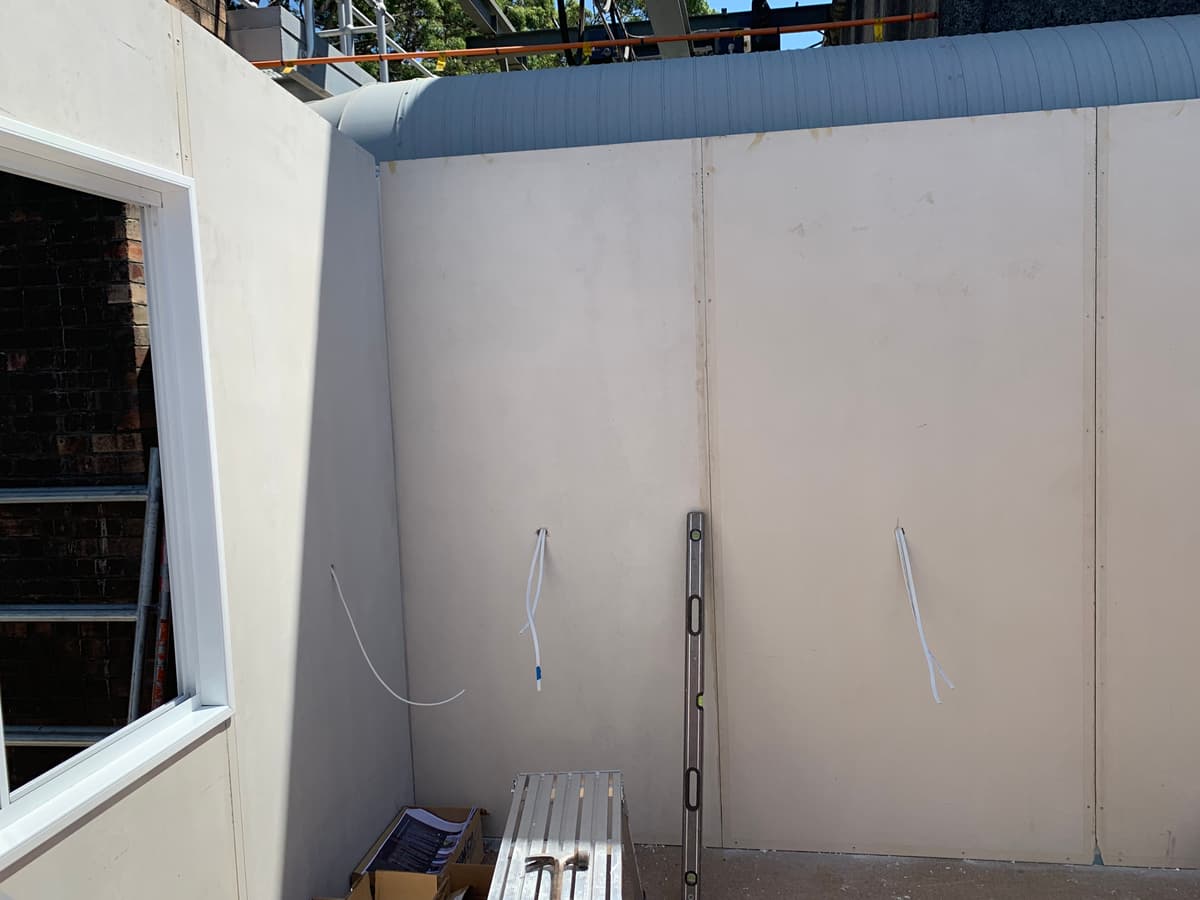

MGO doesn't absorb moisture and doesn't support mould. Use it behind tiled showers, in laundries, or anywhere steam is a problem. Same Class A1 non-combustible core as every Magna panel.
Goes up like plasterboard. Stays up forever.
Full install guide in the Resources library.
Set out the frame
Timber or steel stud at 450mm or 600mm centres. MagnaLiner is heavier than plasterboard — check top-plate fixings on long runs.
Cut to size
Score-and-snap for straight cuts. Angle grinder or jigsaw for cut-outs. Smooth the edge with a float if needed.
Fix to studs
8-gauge Type 17 screws at 200mm centres. Recess the screw head slightly — same as standard plasterboard practice.
Joint and finish
Fill the recessed joint with standard jointing compound. Tape, skim and sand. Prime and paint — done.
Feel the face. Check the edge.
A 300 × 300mm offcut of MagnaLiner, a fastener pack and the install card. Free, ships in three business days.
