Built to last.
Designed to inspire.

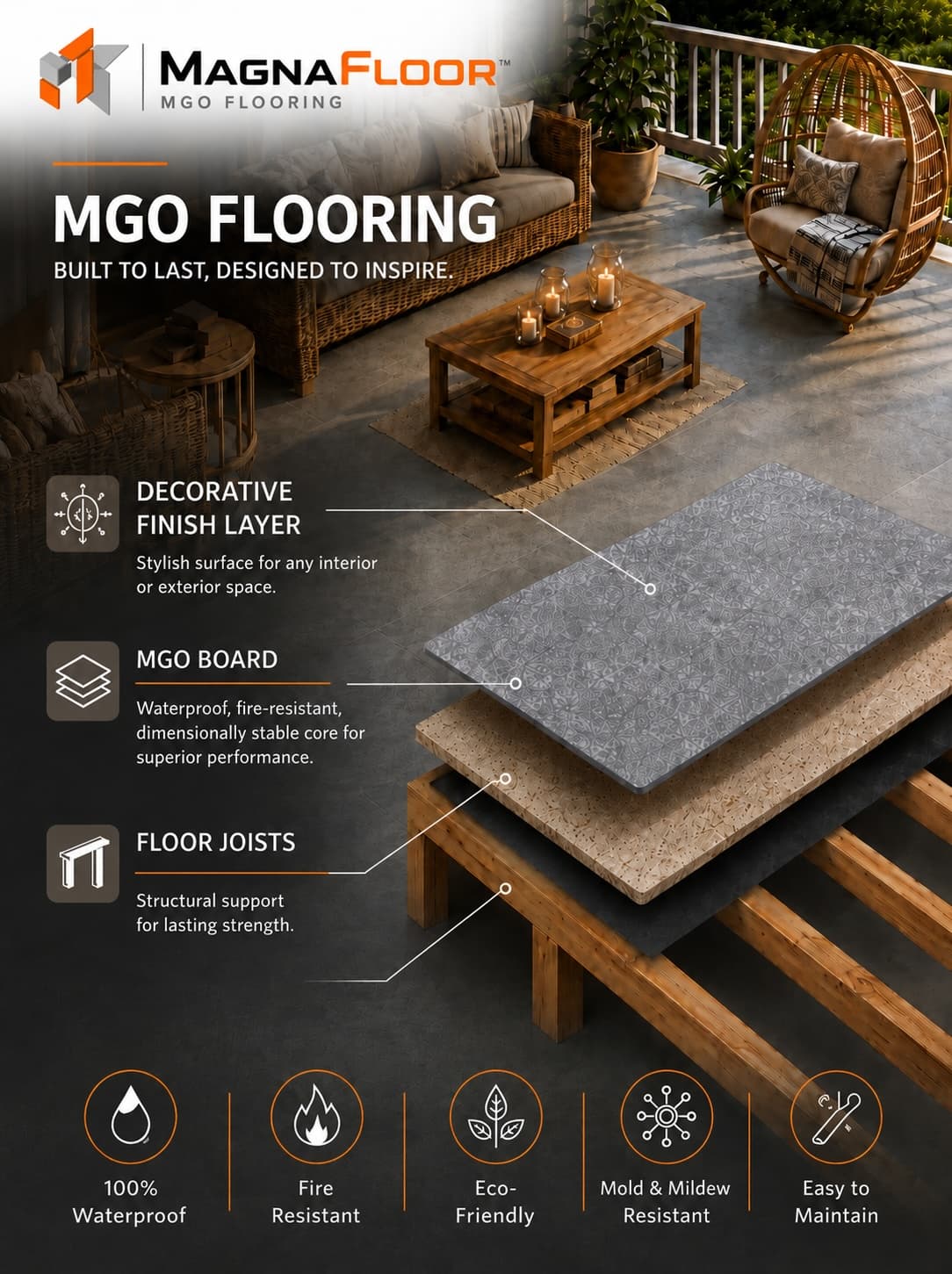

Tongue-and-groove MGO floor panel in 12, 18 and 33mm. Waterproof, fire-resistant and dimensionally stable — the same panel under tile, vinyl, carpet or timber flooring.
Pick your thickness.
All three options are in stock at the Silverdale warehouse. Mix-and-match on a single delivery.
| Thickness | Size | Kgm2 | SheetKg | Use |
|---|---|---|---|---|
| 12mm | 600 × 2400mm | 11.5 kg/m² | ~16.6 kg | Timber frame · vinyl or carpet finish |
| 18mm | 600 × 2400mm | 17.3 kg/m² | ~24.9 kg | Steel frame · tile or stone finish |
| 33mm | 600 × 2400mm | 31.7 kg/m² | ~45.7 kg | High-load · commercial flooring |

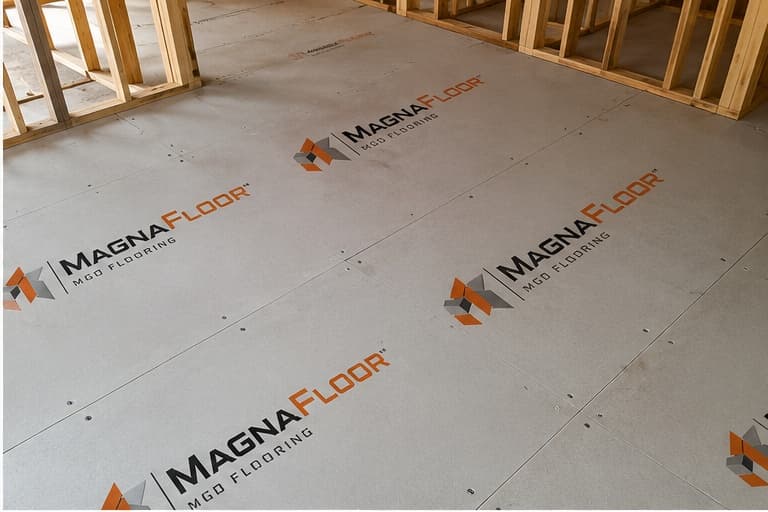

Installed by real builders.

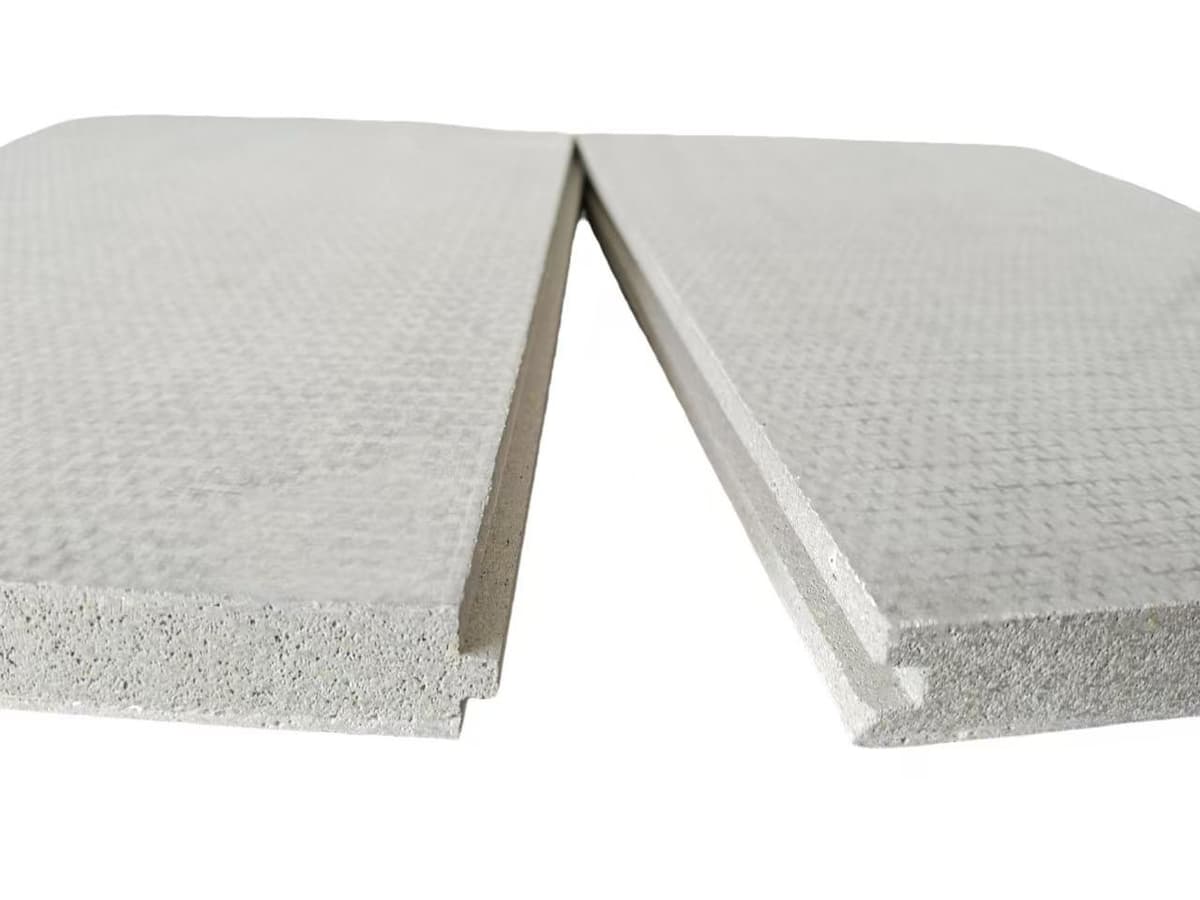

Tongue-and-groove. No gaps. No movement.
The T&G edge locks adjacent panels together before the screw goes in. No bridging, no hollow points, no grout cracking after six months.
- Eliminates panel-edge deflection
- Works under tile, LVP, carpet and hardwood
- Score-and-snap cut in under 20 seconds
- No silicone joint required at butt joints
Tested by Intertek. Not a number on a brochure.
Every claim on this page has a test certificate behind it. Fire, moisture, chloride content, bending strength — all independently verified by Intertek before a single sheet ships.
Download the test reportsLay it down. Walk away. Come back in six weeks.
MGO doesn't swell, bow or delaminate when moisture gets in. Lock it down on a Friday, flood it on the weekend, tile it Monday. The panel doesn't care.
- No penetration under CNS 13778 water permeability test

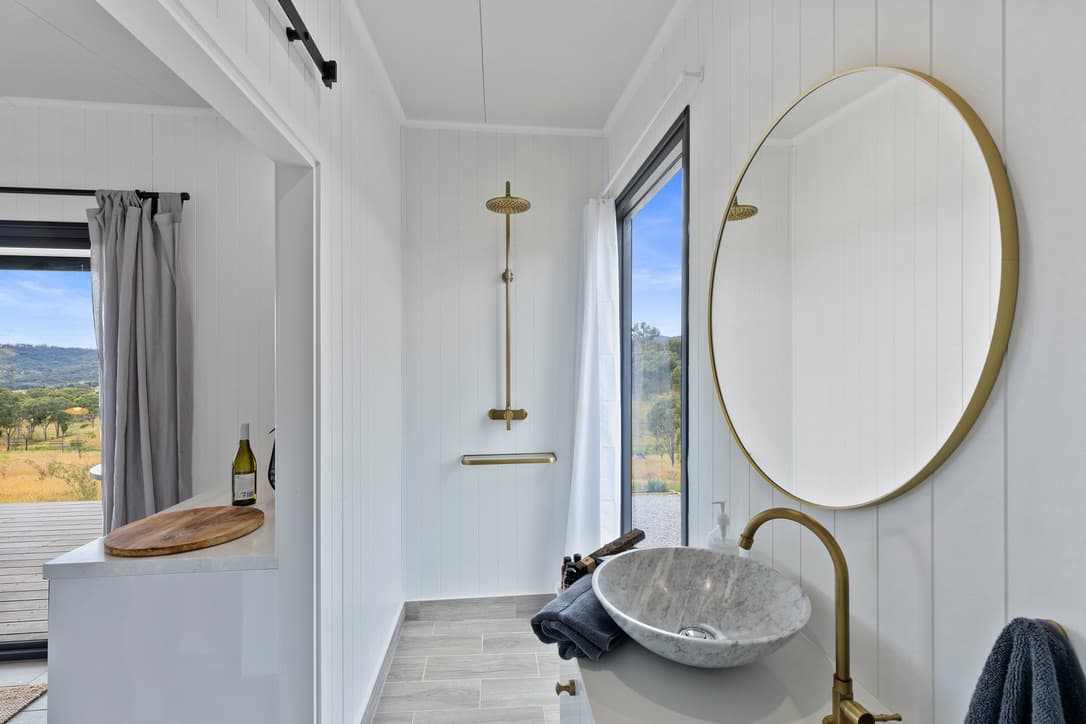

- Suitable for wet areas: bathrooms, laundries, kitchens
- Dimensional stability — no seasonal movement
- Mould and bacteria resistant core
Four steps. Half a day.
Full install guide in the Resources library.
Inspect the deck
Check joists are level, dry and within span tolerance. Clear any debris — MGO doesn't forgive hollow spots.
Score and snap
No power tools required. Score with a Stanley knife, snap over a straight edge. Two cuts per sheet, both in under a minute.
Lay and screw
T&G joints interlock first. Fix at 200mm centres with 10-gauge Type 17 screws. Two people can floor a standard bedroom in three hours.
Hand it over
Clean, level, fire-rated floor ready for any finish. No drying time, no membrane, no waiting.
Score it. Snap it. Soak it.
A 300 × 300mm offcut of MagnaFloor, a fastener pack and the install card. Free, ships in three business days.
